Steel Post with Poured Footing

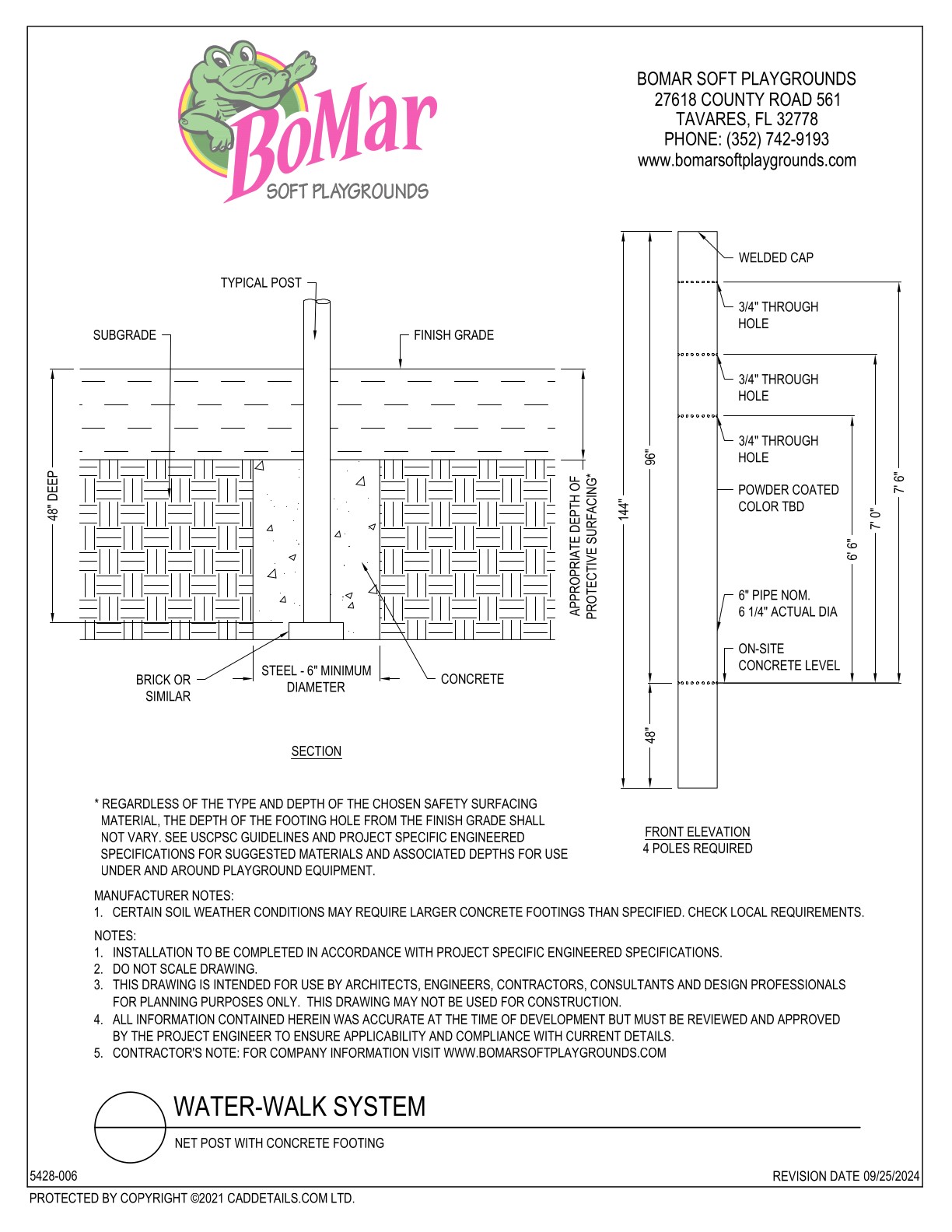

Typical post elevation, mounting relationship and concrete footing detail.
Water-Walk component 01
Steel Posts
The structural supports that establish the overhead-net span at each end of the Water-Walk.
Specifications + templates
Review, download, and return.
Review the typical steel-post configuration, through-hole locations and poured concrete footing detail used to begin project coordination. Final structural requirements remain project- and site-specific.
Download the applicable sheets, add the requested project information, and return the completed documents to BoMar for review. Final requirements are confirmed for each site and project.
